Dynamic Property: Batch register e-mails with active link

Introduction

This is a request we received from openBIS users: you have a list of persons and you want to store their email address as a clickable mailto hyperlink.

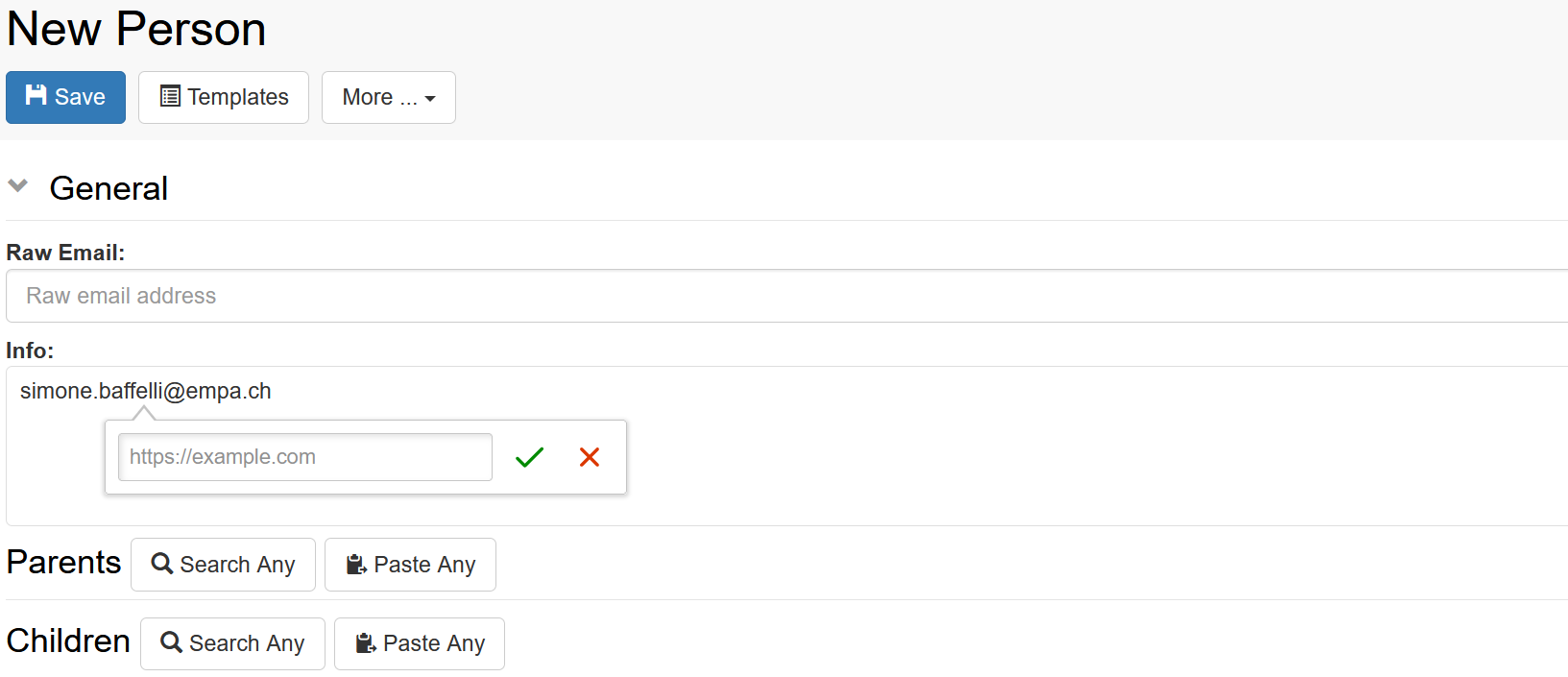

This is already possible in MULTILINE_VARCHAR fields using the rich text editor (see here to learn how to enable them), but requires the user to manually enter the link, as shown in the image below.

rich text editor

However, users wanted to automatically generate a mailto link when using the Excel batch import feature. We found a solution to this requirement by using the dynamic property function of openBIS (more info here). Follow the step-by-step guide below to learn how.

How does this solution work?

For this solution to work, we need to define two email properties in the object type. One must be named EMAIL_RAW and will be used as input value for the dynamic property script, giving the script the raw email address that should be displayed as an hyperlink. The other property can have any name and should be assigned the dynamic property script. Any time the value of EMAIL_RAW changes, the dynamic property script runs and generates an HTML fragment which is then displayed in the ELN as an hyperlink. The graph below summarizes the process:

flowchart LR
    input[email input]
    re["RAW_EMAIL: some.address@domain"]
    plugin[Email plugin]
    html[HTML Fragment]
    email[Email property]
    processor[Word processor plugin]
    link[mailto]
    input --> re --triggers--> plugin --produces--> html --> email --> processor --displays--> link

How to setup a clickable email address property

Here is a step by step guide on how to proceed, if you want to setup an object property showing an email address as a mailto link. The steps in summary are as follow:

  1. Create a dynamic property plugin
  2. Add a RAW_EMAIL property to your object type
  3. Add or edit another email property in your object type
  4. Assign the plugin to the second email property of you object type
  5. Enable the word processor widget for the property, so that the link is displayed as an hyperlink in the ELN

Define a dynamic property plugin

Access you openBIS admin UI, and go to the Tools tab. There, select Dynamic Property Plugins from the left menu and press the Add button.

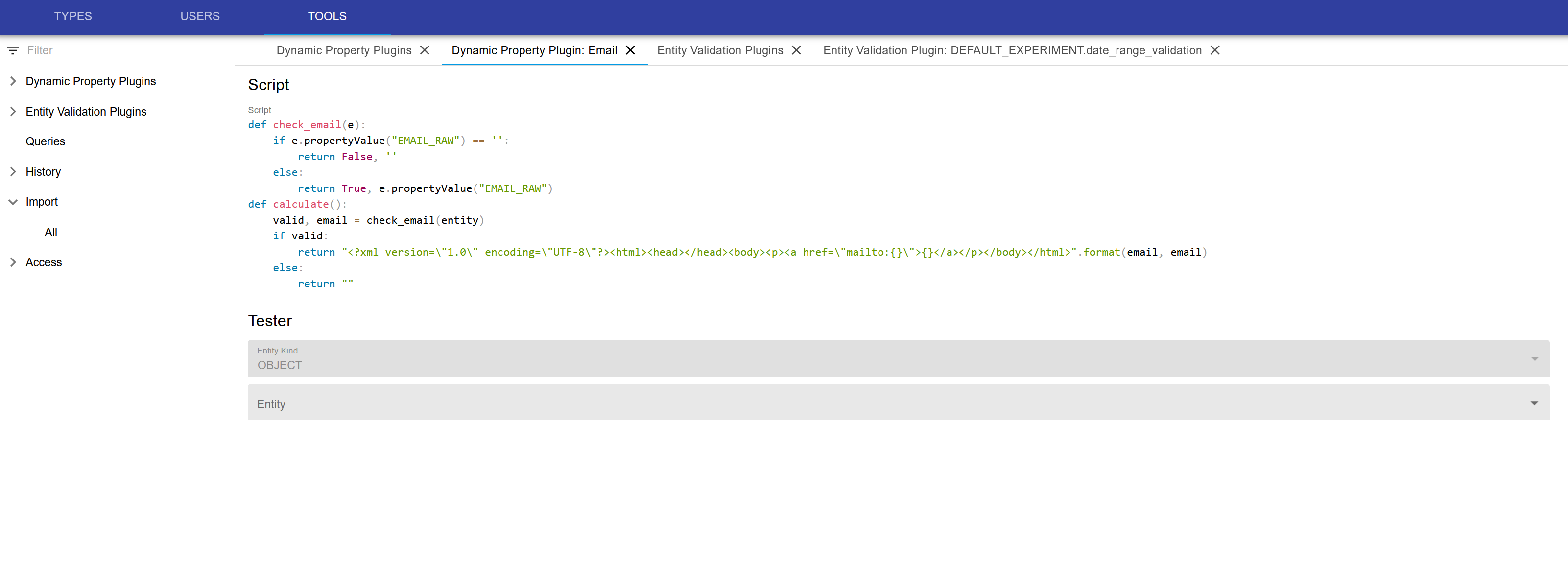

plugin editor

In the plugin editor, assign a name to your plugin in the right column.

Now, enter the following code in the Script text field:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
def check_email(e):
    if e.propertyValue("EMAIL_RAW") == '':
        return False, ''
    else:
        return True, e.propertyValue("EMAIL_RAW")
def calculate():
    valid, email = check_email(entity)
    if valid:
        return "<?xml version=\"1.0\" encoding=\"UTF-8\"?><html><head></head><body><p><a href=\"mailto:{}\">{}</a></p></body></html>".format(email, email)
    else:
        return ""

Once you are done, press the Save button in the lower right side of the page.

Extra: multiple emails

If you want to adapt this approach to manage multiple emails, you can change check_email as follows:

1
2
3
4
def check_email(e):
    input = e.propertyValue("EMAIL")
    emails = input.replace(",", ";")
    return True, emails

Now, your input should be a comma-separated list of email instead of a single email

Add the dynamic property to your object type

Now that you defined the plugin, you need to assign it to a property of the object type.

In order to do so, you first need to add a VARCHAR property to your object with the name EMAIL_RAW; this property will be used as input for the calculation of the email link. In the example below, we created a object of type PERSON and added this property:

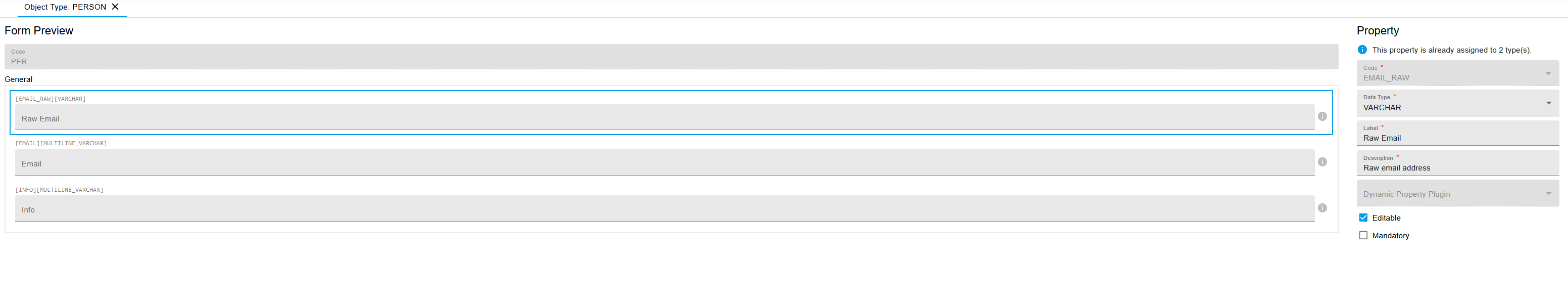

person definition

Instead of PERSON, you should select the object type you want to attach the email to.

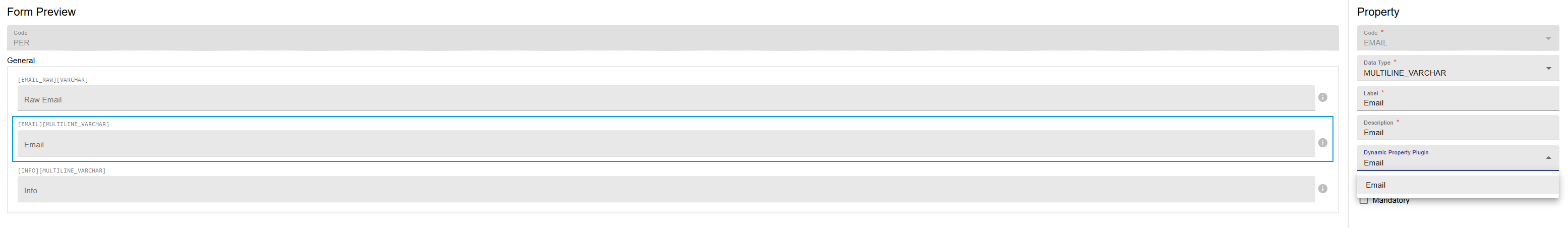

Now we need to add the final email field, the one you want to see displayed as a clickable link in your ELN. To do so, add a property to your object type and choose to use a dynamic property plugin, as shown in the example below:

person definition

Once you are done adding these two properties to your object type, save it and leave the Admin UI.

Enable the word processor in the ELN Settings

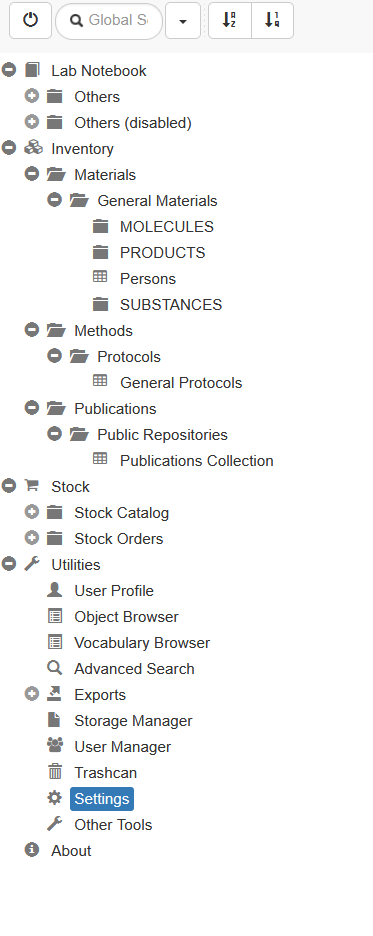

Now open your ELN user interface and go to the Settings. In the left menu, these are under Utilities, as shown in the screenshot below.

Settings

Once you are in the settings page, enable the editing of settings, then to the Instance Settings section and expand the UI Widgets subsection:

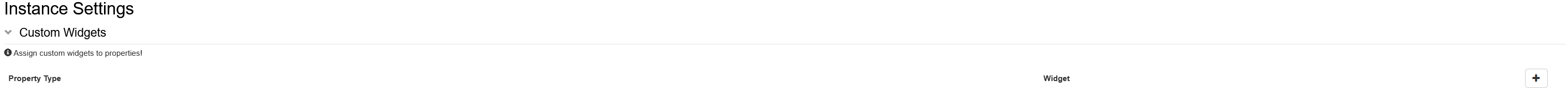

Instance Settings

Now, click on the + button. This will add a new entry at the bottom of the list of available widgets. This allows you to enable the rich text editor (Word Processor) to the previously defined EMAIL property:

Instance Settings

Congratulations, you finished your configuration!

How to use the email property

If you are loading data using the Excel batch importer, just add the EMAIL_RAW column to your table and enter the email addresses in the column. The corresponding formatted email addresses will be displayed as the EMAIL property in the ELN.

If you want to modify its value, only change the EMAIL_RAW property value. The EMAIL property which is assigned the property plugin cannot be edited and should not be used during the batch upload process.

Last update: November 11, 2024
